Description

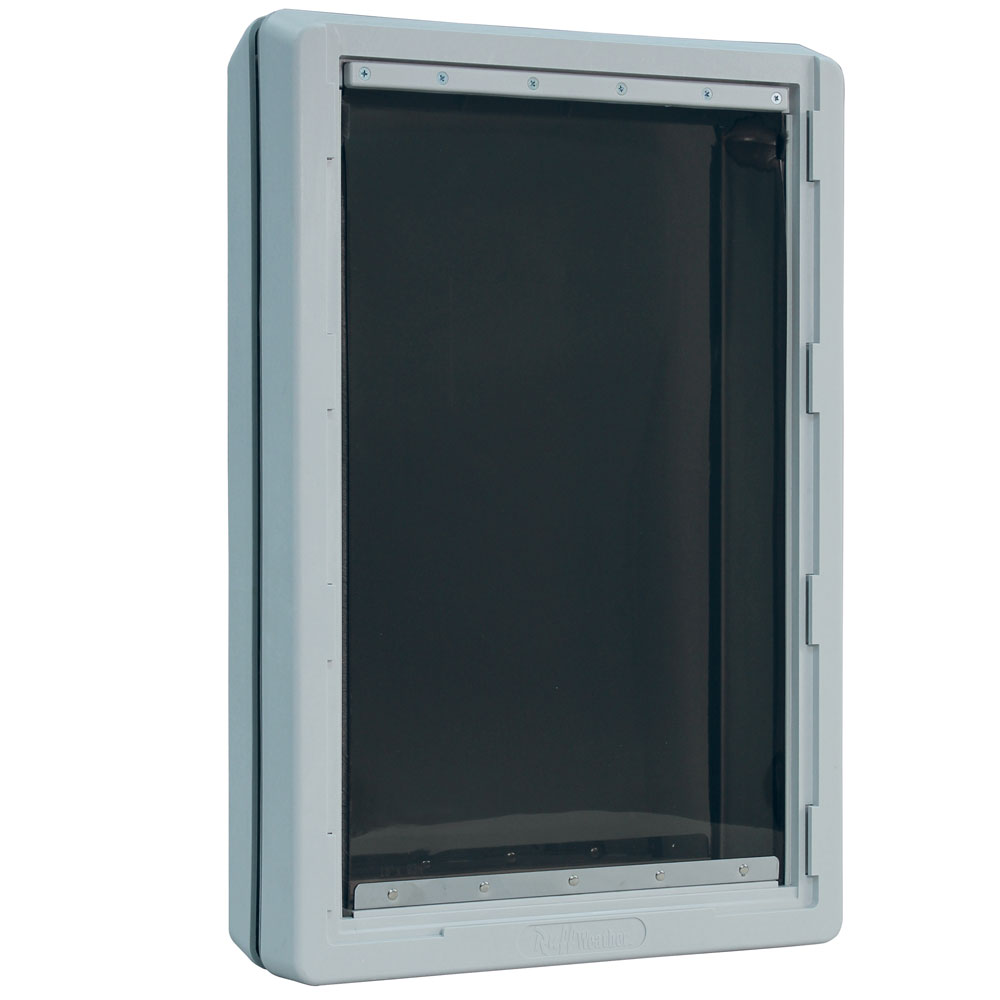

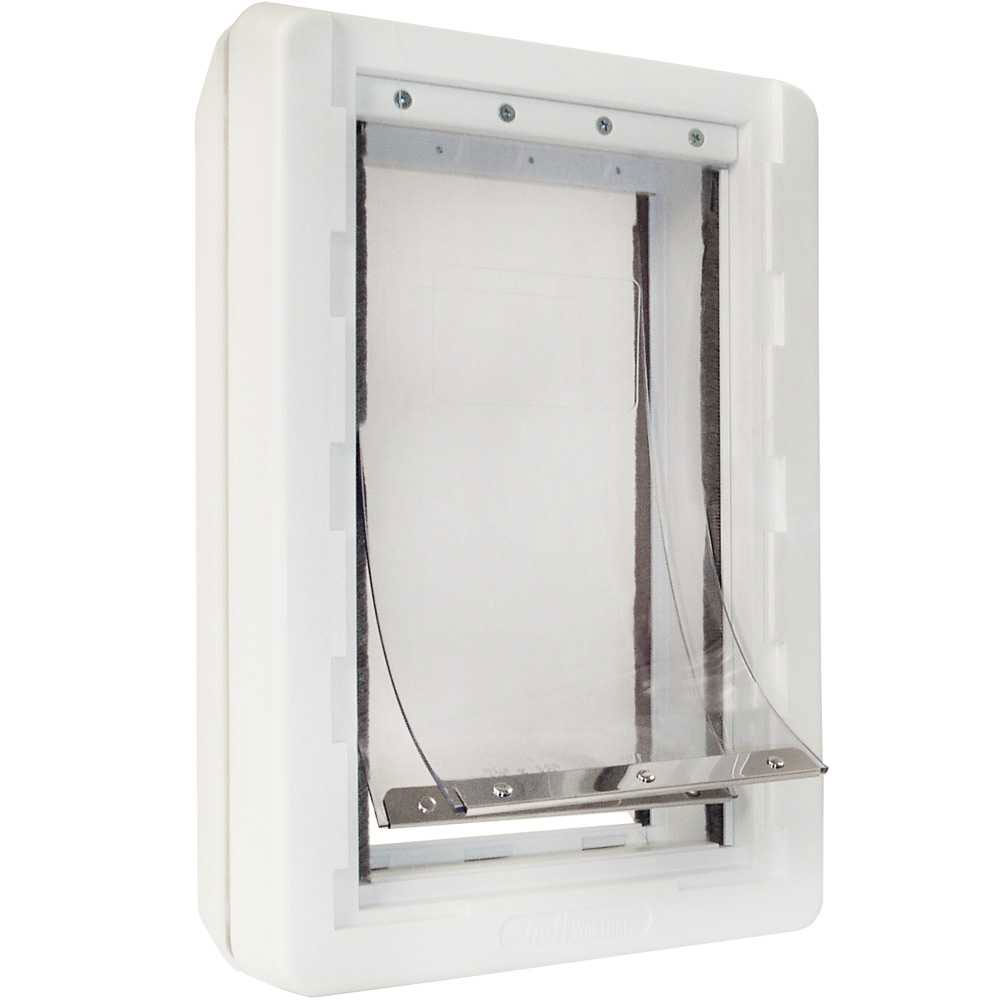

The Ideal Pet Designer Series Ruff-Weather Wall-Kit is designed exclusively for use with the Ideal Pet Products Designer Series Ruff-Weather Pet Door. This wall kit allows you to easily install your new Designer Series Ruff-Weather Pet Door into a wall from 4 and ¾ inches to 7 and ¼ inches thick. Best of all, it can be used in either interior or exterior walls. Each kit comes with everything you need, from easy-to-follow instructions to all the hardware included.
Key Features:
- Allows your Designer Series Ruff Weather Pet Door to be installed through an exterior or interior wall.
- Eliminates the hassle and guesswork of wall installation with easy to follow instructions.
- All the hardware comes included with every purchase, so you’ll have everything you need.
- Comes in various sizes, so you can find the one that best suits your needs.
- All Ideal Pet Products feature a one-year warranty, so you can purchase with confidence.
Useful Information
Download Ruff Weather Wall Kit Installation Instructions
| Pet Door Style/Size | Pet Door Model # | Thickness Range for Door Frame or Wall | Pet Door Flap Size | Pet Door Cutout Size | Recommended Weight Range of Pet |
|---|---|---|---|---|---|
| Small | DSRWSWK | 4-¾" to 7-¼" | 5" x 9-¼" | 6-½" x 11-¼" | 2 to 12 Lbs. |
| Medium | DSRWMWK | 4-¾" to 7-¼" | 7-¼" x 13" | 8-⅜" x 15" | 13 to 35 Lbs. |
| Extra Large | DSRWXLWK | 4-¾" to 7-¼" | 9-¾" x 17" | 11-⅛" x 19-¼" | 36 to 90 Lbs. |
| Super Large | DSRWSLWK | 4-¾" to 7-¼" | 15" x 23-½" | 16-¼" x 25-¾" | 91 to 120 Lbs. |
To determine the correct size door simply measure the width and height of your pet:
- Measure the widest point of your pets shoulder to obtain the width measurement.
- Measure from the top of your pets back (just behind his head) to the bottom of chest to obtain the height measurement.

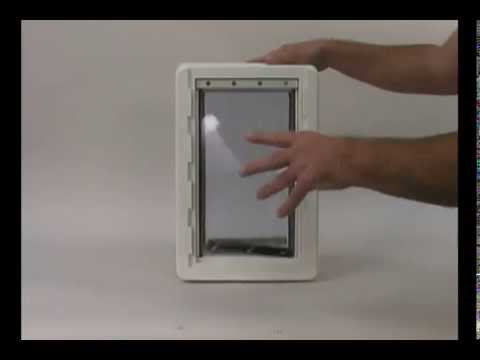

Ruff-Weather or Protector Wall Kit Installation (part 1)
Ruff-Weather or Protector Wall Kit Installation (part 2)
Ruff-Weather or Protector Wall Kit Installation (part 3)
Ruff-Weather or Protector Wall Kit Installation (part 4)
Ruff Weather Wall Kit Instructions For Door Installation
IMPORTANT!!! Whenever Drilling And Cutting Through Walls, Extreme Caution Should Always Be taken To Avoid Gas, Electric & Plumbing Lines.
To cut opening, use the template and instructions included with the Ruff Weather Pet Door (Purchased Separately). Note: We recommend two persons working together to complete installation Steps 4 and 5, listed below.
Step #1. Measure the wall thickness through the cut out opening and make a note of wall thickness "A". For walls 6-¾" to 7-¼", use Wall Kit as is. For walls less than 6-¾" assemble the six (6) panel sections and using a felt-tipped marker, mark an "X" on all sic (6) panel sections left side Edge Tabs "B". Disassemble and snap off the "X" marked Edge Tabs using vice grips. Re-assemble and test for fit. If Wall Kit needs to be shorter, snap off the right side Edge Tabs "C" using vice grips. See Diagram 1.
Step #2. Complete the final assembly of Wall Kit by firmly press-fitting al six (6) panel sections together. See Diagram 2.
Step #3. The wall Kit Screws included are 9-½" long and may need to be shorter for your wall assembly. Use the following instructions to determine custom length: Through wall dimension "A" + 2-⅝" = Wall Kit Screws custom length. Mark this length on screws and thread a ¼"x20 nut (not supplied) onto screw past the mark. Clamp screw and cut with a hack saw at mark. After cutting, UN-thread the nut from screw to remove excess material at end of screw.
Step #4. With a second person holding "Outer Frame" of Ruff Weather Door in place, insert assembled Wall Kit into opening from inside. We recommend a wood support (not supplied) be installed inside wall, underneath your wall kit. See Diagram 1. Place "Inner Frame" of Ruff Weather Door into opening around the Wall Kit. The Wall Kit will be slightly shorter than the cut out opening thickness. Push Wall Kit until it is touching the ribs on the inside frame and/or caulk in place with silicone caulk (not supplied).

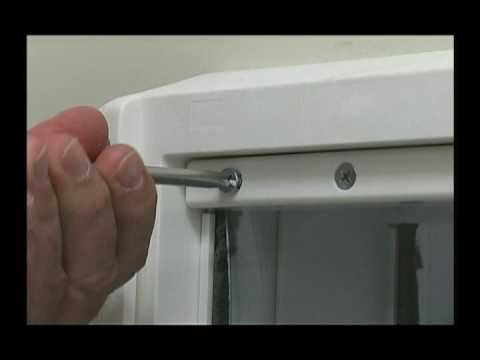

Step #5. To complete the installation, insert Wall Kit Screws and tighten securely. Do Not Over tighten.
Step #6. For better insulation, you may use silicone caulking (not supplied) to fill any gaps around your Wall Kit.
