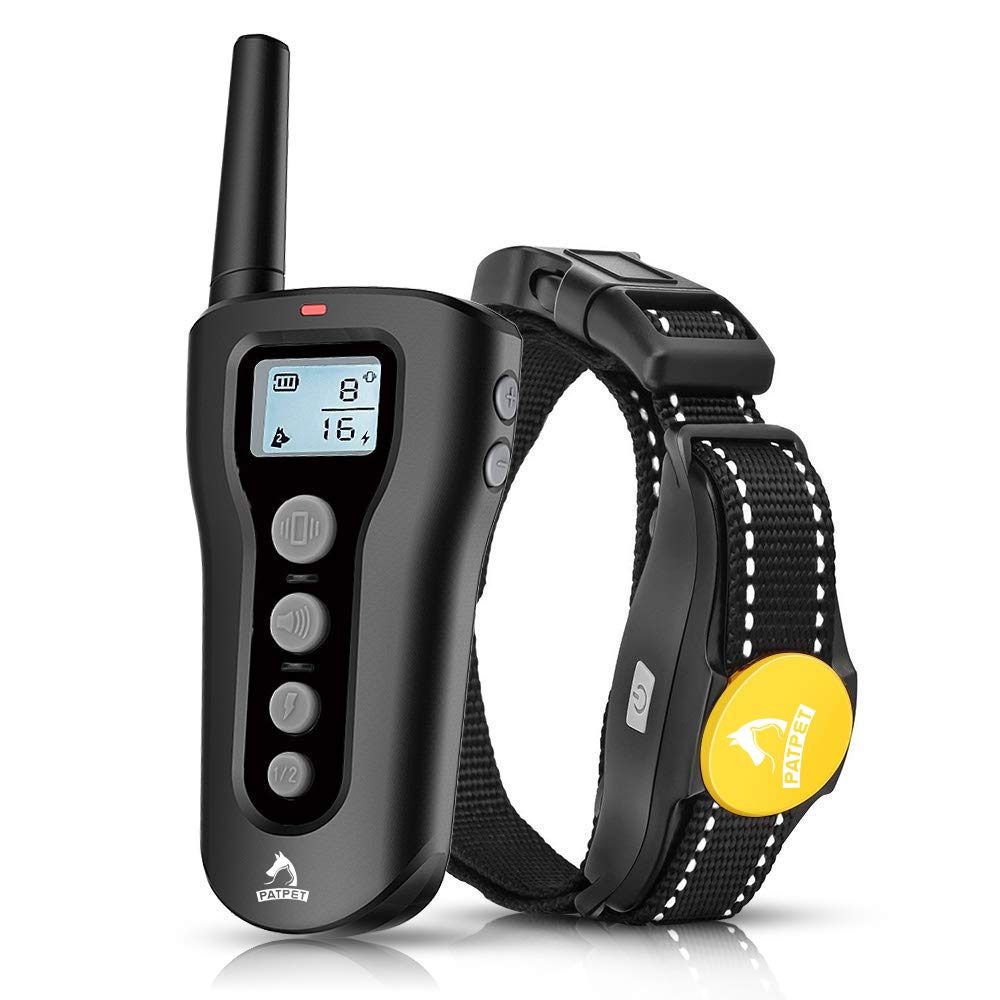

PATPET Dog Training Collars

P-C320 Operating & Training Guide

Operating Guide

How to turn the p-collar 320 on/off

To turn the Transmitter on

• Press any of Action Buttons (vibration, tone & shock) to active the Transmitter. The back light on.
• Back light will stay for about 30 seconds. If no operation then, back light off.
• LCD display will stay for about 5 minutes. If no operation then, LCD display shuts off.

To turn the Transmitter off

Transmitter DO NOT have turn off function. In order to give a rapid reation by pressing Transmitter in time when dogs have a bad behavior. In this case, If need to turn on the transmitter, we may miss the best training time.

To turn the Receiver Collar on

Press On/Off Button once, the green light on and will flash every 5 seconds under working mode.

To turn the Receiver Collar off

• Press and hold the On/Off Button until the Red LED light shuts off. (This takes approximately three seconds.)
• Release the On/Off Button.

Note: To extend the life of the batteries, turn the Receiver Collar off when it is not in use.

How the transmitter buttons work

• Press Action Buttons (vibration, tone & shock) once to send a vibration, tone, shock command to Receiver Collar.
• Press and hold vibration/shock, Receiver Collar will have a continuous vibration/shock, and stop after 10 seconds.

Note: Do not suggest to press and hold vibration/shock for long time to avoid physical or psychological hurt to the dog.

Dog 1/2 Button

• Press 1/2 once to switch between Dog 1 and Dog 2.
• Press and hold 1/2 until the Vibration digit flashes. Press "+-" to adjust Vibration Level from 1-8.
• Press and hold 1/2 until the Shock digit flashes. Pres "+-" to adjust Shock Level from 1-16.

Collar Fitting

The Receiver/Collar should be fitted so that the surgical stainless steel contact points press firmly against the dog's skin. When properly fitted, you should be able to fit a finger or two snugly in between the collar and you dog's skin. When properly fitted, the Receiver/Collar should not move on the dog. The best location for the Receiver/Collar box is either side of the dog's windpipe.

A loose fit can allow the Receiver/Collar to move around on the dog's neck. When this happens, the contact points may rub the skin and cause irritation. If the Receiver/Collar is too tight, the dogs may have difficulty breathing.

How to find the best Vibration/Shock Level

The unit comes with Up and Down buttons to control the Vibration/Shock Level, with Level 1 being the lowest level for both Vibration and Shock, Level 8 being the highest for Vibration and Level 16 being the highest for shock.

The level of Vibration/Shock best suited for your dog depends on your dog's temperament and threshold for Vibration/Shock. Always start at the lowest level and work your way up.

The appropriate level can be found when the dog responds to the Vibration/Shock with a mild reaction, such as a tensing of the neck muscles. The Vibration/Shock Level may vary depending on the training situation. When highly distracted, dogs will require a higher level of Vibration/Shock.

How to switch Between Vibra Level and Shock Level

• Press and hold 1/2 until the Vibration digit flashes. Press "+-" to adjust Vibration Level from 1-8.
• Press and hold 1/2 until the Shock digit flashes. Press "+-" to adjust Shock Level from 1-16.

To maximize the distance

The unit has 300 meter range. the range may vary depending on the way the Transmitter is held. Hold the Transmitter away from your body to receive the greatest range. For maximum signal strength, keep the device properly charged.

Avoid touching the antenna or the range may decrease substantially.

The LCD & LED indicator

Transmitter LED Indicator Light-Function & Response

Receiver Indicator Light - Function & Response

Receiver Collar Function	Green LED Response
Power On	Flashes once
Normal operation - Good battery	1 flash every 5 seconds
Training tone	On length of TONE button press
In pairing position	Flashes once every second within 15 seconds
Pairing Complete	Flashes rapidly for five times
Charging Complete	On length of the charger connected
Receiver Collar Function	Red LED Response
Power off	On for 3 seconds
Normal operation - Low battery	Flashes rapidly
Vibration/Shock	On length of VIBRA/SHOCK button press
Charging	On length of charging within 2-3 hours

Charging the unit

The unit uses Lithium-Polymer batteries.

• Charge the unit before using the unit fr the first time.
• Do not charge the unit near any flammable substances.
• Fully charge if the unit is to be stored without use for a period of 3 months or more.

Recharge the unit if:

• The indicator light on the collar is emitting a red color & flashes rapidly.
• The 3 bar indicator on the Transmitter LCD shows just 1 bar.
• the indicator light on the Transmitter or Receiver will not come on.
• The indicator light on the Transmitter or Receiver comes on momentarily when any of the Mode Buttons is pushed.

Battery Charging Procedure:

NOTE: The unit has a partial charge when it leaves our facility, upon receipt of the collar, be sure to give it a 4-hour initial charge before the first use.

• Plug the charger into a standard wall outlet.
• Lift the rubber covers protecting the Transmitter/Receiver Collar Charging Jack.
• Connect the charger connectors to the Transmitter and Receiver Collar Charging Jack, and as shown below.
• Connect the USP port to the Charging Adapter.
• Charge the unit for 4 hours for the first charge. Recharges take only 23 hours.
• Note: The Battery Indicator on the Transmitter will scroll and the indicator light in steady red while charging; and the Battery Indicator will become steady, and the LED Indicator Light flashes when fully charged.
• The indicator light on the Receiver Collar will be in steady red while charging and green light turned on when fully charged.
• When charging is competed, remove the charger connector.

How to pair the Remote Transmitter & Receiver Collar

If your Receiver Collar does not beep when the TONE Button of the Remote Transmitter is pushed, or if you feel the Receiver Collar is not responding to the Remote Transmitter, follow these steps to pair:

• With the Receiver Collar off your pet, turn the Receiver Collar off. Restart, press and hold the On/Off Button until the Green LED flashes every second on the Receiver Collar.
• Pres any of Action Buttons (vibration, tone & shock) on the transmitter, the Green LED Light on the Receiver Collar flashes rapidly for 5 times which means pairing is completed.

Two Dog System

NOTE: If you wish to add another Receiver Collar to the training system, extra Receiver Collars are available where you bought your unit.

Remote Transmitter

• Switch Dog1 to Dog2 by pressing and releasing the Dog 1/2 Button.
• Turn on the Receiver Collar for Dog 2, press any Mode Buttons to verify function.
• If Dog 2 Receiver Collar does not respond. Pairing may be needed. Repeat steps in How to pair the Remote Transmitter & Receiver Collar above.

How to use the Test Light

• Turn the Receiver Collar on.
• Hold the test Light Contacts to the Contact Points.
• Press the SHOCK Button on the Remote Transmitter.
• The Test Light will flash.
• Note: At higher Shock Levels, the test Light will flash brighter.
• Turn the Receiver Collar off.

Save the Test Light for future testing.

Note: If the Test Light does not flash, recharge the Receiver and re-test. If Test Light still does not flash, contact us for Customer Service.

Training Guide

General Tips

• Eliminate one misbehavior or teach one obedience command at a time. If you move too fast with training, your pet may become confused.
• Be consistent. Correct your pet every time he misbehaves.
• Unless you can supervise him, it is recommended that you restrict your pet from situations in which he has a history of misbehaving. However, setting up a situation as a training session can dramatically improve your chances of success.
• If your pet reacts to the tones by hiding or acting fearful, redirect his attention to a simple and appropriate behavior, such as the "sit" command.
• Pets should be at least 6 months old before using the Training Collar.
• Only let responsible family members use the Training Collar. It is not a toy!
• Other pets in hearing range will be affected by the training tones. Therefore, training sessions should be conducted out of hearing range of other pets.

WARNING: Never use the Remote Training Collar to correct or eliminate any form of aggressive behavior. We recommend you contact your local veterinarian or professional trainer to determine if your pet might be aggressive.

FAQ's

How to switch Between Vibra Level and Shock Level?

• Press and hold 1/2 until the Vibration digit flashes. Press "+-" to adjust Vibration Level from 1-8.
• Press and hold 1/2 until the Shock digit flashes. Pres "+-" to adjust Shock Level from 1-16.

Is the Vibration/Shock safe for my pet?

While the Vibration/Shock is unpleasant, it is harmless to your pet. Electronic training devices require interaction and training from the owner to achieve desired results.

How old does my pet have to be before using the Remote Training Collar?

Your pet should be able to recognize basic obedience commands such as "Sit" or "Stay". Pets should be at least 6 months old before using the Training Collar.

Once my pet is trained and has been obeying my commands, will he have to continue to wear the Receiver Collar?

Probably not. You may need to Collar from time to time. Reinforce training with the Receiver.

Is the Receiver Collar Waterproof? Yes.

Will I get exactly 300 meters of range with the Remote Training Collar?

The range of the Remote Training will vary according to terrain, weather, vegetation, as well as transmission from other radio devices. See "To maximize the distance" for tips on maximizing your range.

How long can I continuously deliver Vibration/Shock to my pet?

The maximum amount of time you can press the Vibration/Shock Button and deliver Vibration/Shock to your pet continuously is 10 seconds. After this, Vibration/Shock cannot be delivered until You release and press the button again.

Trouble Shooting

My pet does not respond when I press a button.

• Make sure the Receiver Collar has been turned on.
• If your range has reduced from the first time you used the Remote Training Collar, the battery(s) may be low in either the Remote Transmitter or Receiver Collar.
• Terrain, weather, vegetation, transmission from other radio devices and many other factors can impact the amount of range you have with the unit.
• Test the Receiver Collar See "How to use the Test Light" for details.
• Increase the Vibration/Shock Level. Refer to "How to find the best Vibration/Shock Level" for more information.
• Make sure the Receiver Collar's Contact Points are placed snugly against your pet's skin. Refer to "Collar fitting" for more information.

The Receiver Collar will not turn on.

• Make sure the Receiver Collar has been charged. For the initial charge, be sure to charge it for 4 hours. Subsequent charges only take 2-3 hours.

The Receiver Collar is not responding to the Remote Transmitter.

• Verify the Receiver Collar is on.
• If the Indicator Light does not come on when any button is pressed on the Transmitter, ensure that the batteries are fully charged.
• If the first two solutions did not resolve your problem, see "How to pair the Remote Transmitter & the Receiver Collar".
